Naish 2024 Jet HA Foil – Complete Foil Discounts Apply !

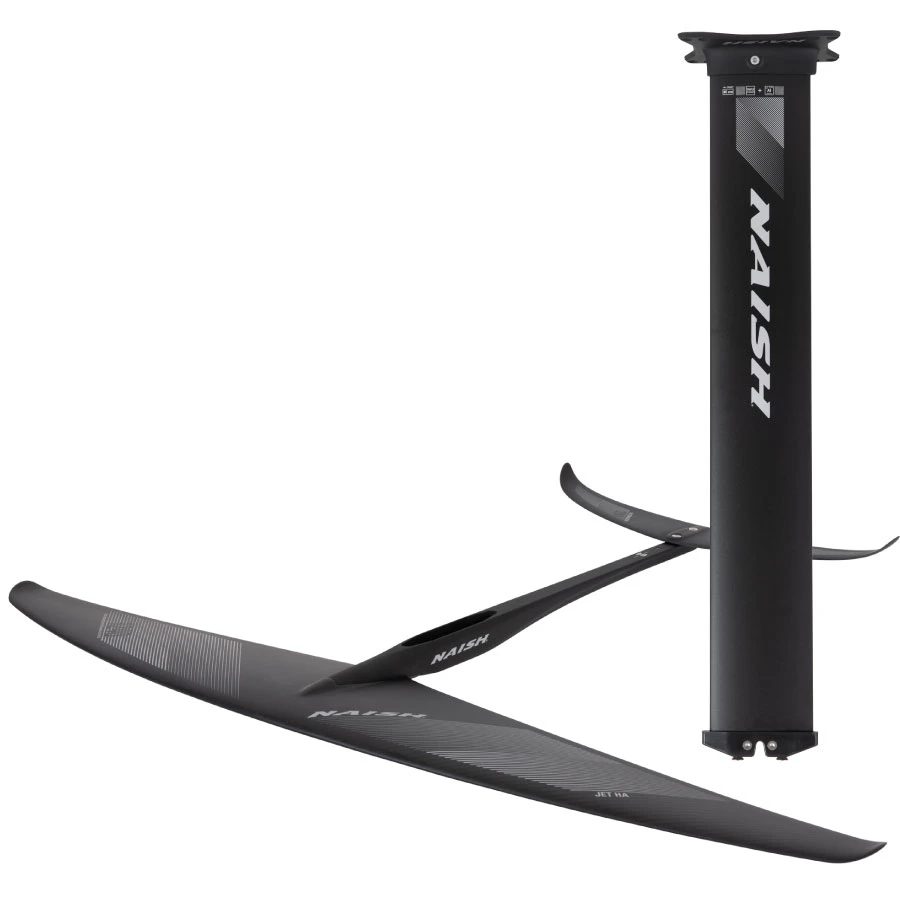

Naish 2024 Jet HA Foil – Complete High Aspect Foil

Build the complete High Aspect foil that best suits your needs by choosing from one of the Naish Jet HA Wing/Fuselage packages and one of the Naish mast options.

The newly developed Jet High Aspect foils have been engineered for maximum efficiency and performance. They feature an increased leading edge area allowing for narrower foil sections, resulting in improved glide and stability. The strategically designed wing tips offer exceptional speed, pumping efficiency, and turning ability. The combination of these elements results in a maneuverability that has never been seen before with HA foils. The slight rake angle reduces drag while providing more control and improved lift during turns. This new design also allows the foil to breach the surface without interrupting laminar flow. The new features on the Jet HA provide an optimized experience that allows riders to foil with ease, making it ideal for all types of riders regardless of skill level. The Jet HA offers an optimal balance between stabilization and performance that ensures smooth handling on any type of wave or swell.

Key Features:

• 100% PREPREG 3K CARBON OUTER LAYER SATIN FINISH – Durable and lightweight construction
• SLIGHT RAKE ANGLE – Reduces drag while providing more control and improved lift during turns
• NEWLY DESIGNED WING TIPS – Provide exceptional speed, pumping efficiency, and turning ability.
• HIGH ASPECT – Maximum efficiency and performance
• NARROW FOIL SECTION – Improved glide and stability
• DUAL EXPANSION CORE CONSTRUCTION – Molded lightweight layup utilizing UD Carbon and Glass Laminate
• SCARF JOINT CONNECTION TO FUSELAGE – Proven and compatible with earlier Naish fuselage models

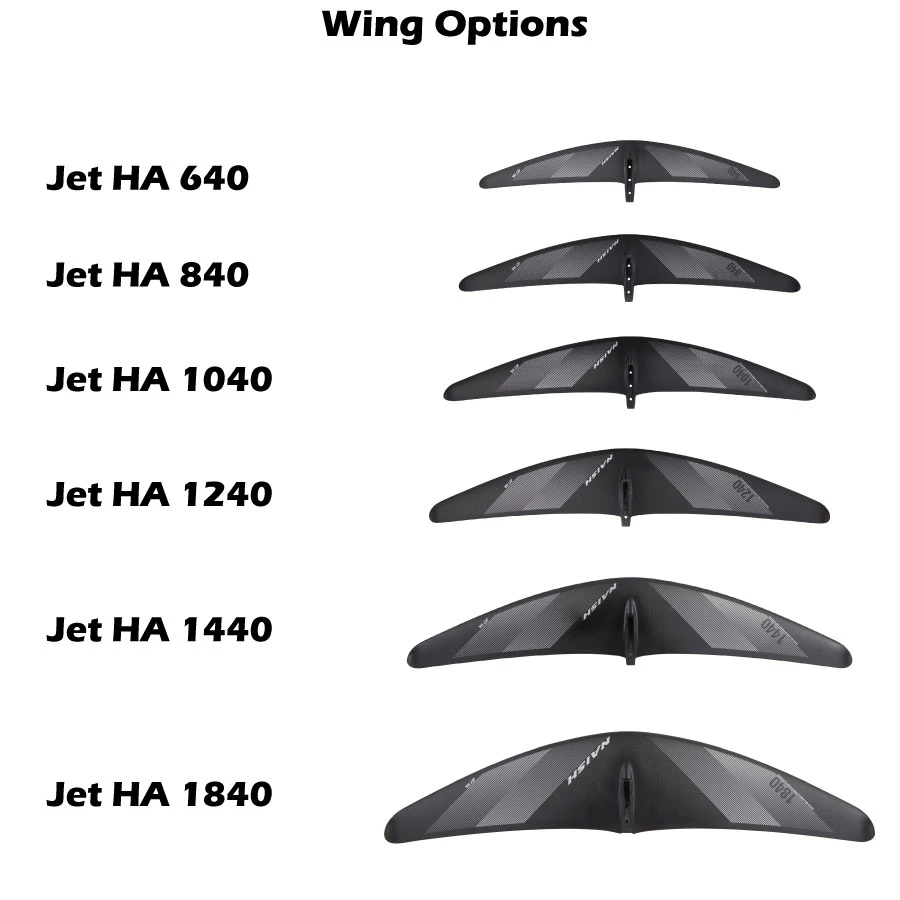

High Aspect(HA)Wing Sizes:

• Jet HA 640
• Jet HA 840
• Jet HA 1040
• Jet HA 1240
• Jet HA 1440
• Jet HA 1840

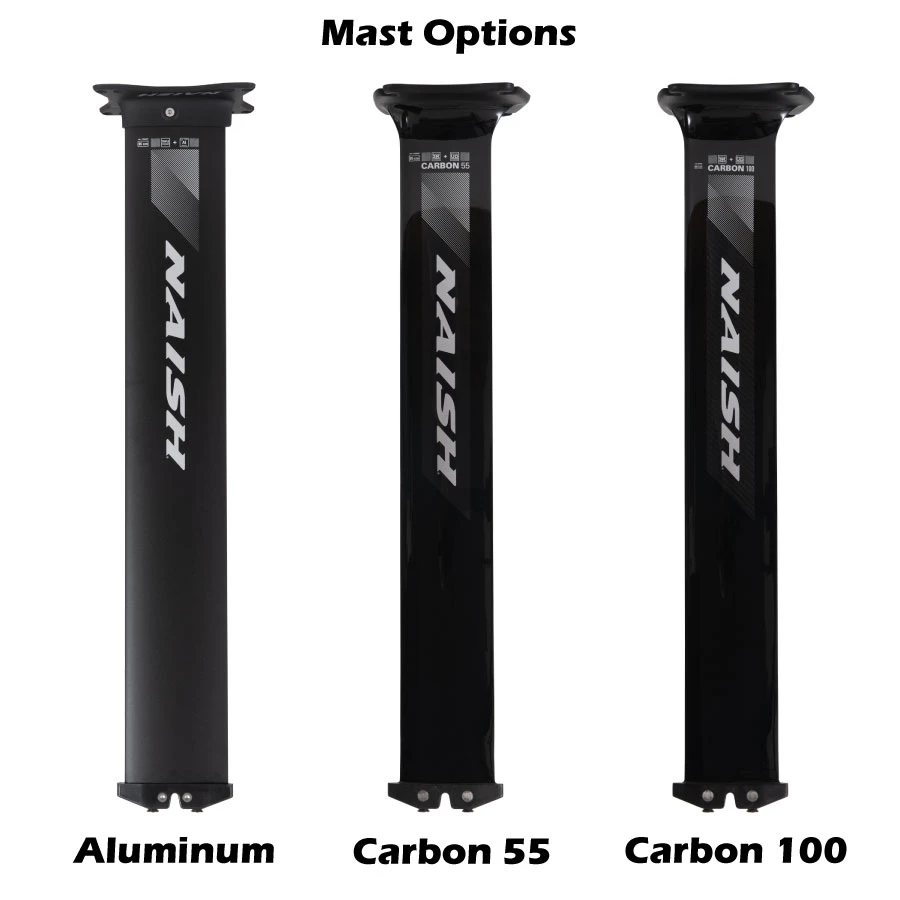

Mast Options:

Aluminum

• The Naish alloy mast has been precision-engineered to feature an updated version of the 6061 aircraft-grade aluminum extrusion that is significantly more robust than its predecessor, with only a slight increase in weight achieved through a result of a new sectional structure that places thicker walls around key buckling points while still holding its original exterior measurements and streamlined profile. Additionally, the mast has been further reinforced with a bonded and screwed board mount composed of two M8 screws and hex bolt for maximum durability. Fastening this mast to the fuselage is done by means of two M8 screws and a molded fuselage connector which also helps protect against corrosion. Included with the setup is a Torx T30 driver which can be used to securely tighten all screw connections.

Aluminum Mast Features:

• Foam core, aluminum mast extrusion
• Tripple bridge stringer
• Screwed and glued mast to board connection
• Screwed and glued mast to fuselage connection

Carbon 55

• The Naish C55 monocoque composite mast is an innovative piece of engineering that provides a state-of-the-art combination of affordability and performance. Its advanced construction includes a dual expanding foam core, which helps to reduce the weight significantly without sacrificing any strength or stability. This smaller profile is shared with the C100 mast, allowing for reduced drag during use. The installation of two 12 mm stainless steel inserts into the mast structure, combined with our specially designed molded fuselage connector, has proven to be an effective solution in eliminating corrosion issues and providing a long-term corrosion barrier. The combination of this precision engineering allows the user to enjoy superior performance at an excellent cost-benefit ratio that won?t compromise long-term durability.

Carbon 55 Mast Features:

• High temperature/high pressure prepreg construction
• Inner foam core for optimized weight
• UD inner layer construction combined with 3K outer layer
• Gloss finish for easy cleaning and keeping an optimized surface without sanding

Carbon 100

• The new Naish C100 monocoque carbon mast is the pinnacle of cutting-edge engineering and design, offering unparalleled performance benefits. Crafted with a combination of 3K and UD carbon fibers, it provides superior bending and torsional rigidity while achieving a ?direct drive? feel for maximum control. Additionally, its dual expanding foam core allows for an exceptionally light weight build that enhances speed and control while preventing corrosion thanks to the integration of (2) 12 mm stainless steel inserts laminated into the mast structure as well as a molded fuselage connector which serves as a protective barrier against corrosion.

Carbon 100 Mast Features:

• High temperature/high pressure prepreg construction
• Inner foam core for optimized weight
• UD inner layer construction combined with 3K outer layer
• Gloss finish for easy cleaning and keeping an optimized surface without sanding
